Hai ragione su entrambi i punti: quanto al QB64 quel che ho scritto dimostra la mia abissale ignoranza da autodidatta in materia… Per quanto riguarda il programma di cui ho parlato, non mi sembrava educato, essendomi appena iscritto, buttare fra capo e collo ai membri di questo forum un listato parecchio lungo… ma visto che adesso abbiamo rotto il ghiaccio, lo metto qui sotto (nel prossimo post metterò il punto preciso in cui il programma va in crash):
$Debug
' NEWTON
' Simulazione del moto di molti corpi celesti
' dimensiona e definisci funzioni
On Error GoTo errore
Dim G As Double, VC As Double, AL As Double
Dim it As Double, pr As Double, dt As Double, pigreco As Double
Dim nc As Integer, ncmax As Integer, Nt As Integer
Dim N1 As Integer, N2 As Integer
Dim MT As Double, RT As Double, Dsatg As Double
Dim MS As Double, RS As Double, DTerra As Double
Dim Mtot As Double, Mmax As Integer, Dmax As Integer
Dim vmax1 As Double, vmax2 As Double
Dim q0 As Double, distmax As Double, dq As Single
Dim acc As Double, xa As Double, ya As Double, za As Double
Dim k As Double, L As Integer, C As Integer
Dim lo As Integer, lv As Integer
Dim pm As Integer, primo As Integer
Dim I1 As Integer, I2 As Integer
Dim diag1 As Integer, diag2 As Integer, diag3 As Integer
Dim AK As Integer, AP As Single, AN As Single, DA As Single
Dim scr As Integer, col As Integer
Dim m1 As Integer, m2 As Integer, den As Single, Ecs As Double
Dim Ep As Double, Epmax As Double, Epmin As Double, Epmed As Double
Dim Ec As Double, Ecmax As Double, Ecmin As Double, Ecmed As Double
Dim Etot As Double, Etmax As Double, Etmin As Double, Etmed As Double
Dim Sen As Double
ncmax = 50 ' Num. max. corpi
lo = 639: lv = 479 ' Limiti grafici
Dim um#(ncmax), ur#(ncmax), ud#(ncmax)
Dim um$(ncmax), ur$(ncmax), ud$(ncmax)
Dim M0(ncmax) As Double, M(ncmax) As Double
Dim R0(ncmax) As Double, R(ncmax) As Double, Rg(ncmax) As Integer
Dim x0(ncmax) As Double, y0(ncmax) As Double, z0(ncmax) As Double
Dim x(ncmax) As Double, y(ncmax) As Double, z(ncmax) As Double
Dim xf(ncmax) As Double, yf(ncmax) As Double, zf(ncmax) As Double
Dim xx1(ncmax) As Integer, yy1(ncmax) As Integer
Dim xx2(ncmax) As Integer, yy2(ncmax) As Integer
Dim zz1(ncmax) As Integer, zz2(ncmax) As Integer, prof(ncmax) As Integer
Dim v(ncmax) As Double, vt(ncmax) As Double
Dim vx(ncmax) As Double, vy(ncmax) As Double, vz(ncmax) As Double
Dim dirxy(ncmax) As Double, dirz(ncmax) As Double, dz(ncmax) As Double
Dim dmax0(ncmax) As Double, Dist(ncmax, ncmax) As Double, pdist(ncmax, ncmax) As Double
Dim Apo(ncmax) As Double, Per(ncmax) As Double, SM(ncmax) As Double
Dim AZ(ncmax) As Single, EL(ncmax) As Single
Dim AN(ncmax) As Single
Dim Ep(ncmax, ncmax) As Double, Ec(ncmax) As Double
Dim Epg(lo) As Integer, Epmedg(lo) As Integer
Dim Ecg(lo) As Integer, Ecmedg(lo) As Integer
Dim Etg(lo) As Integer, Etmedg(lo) As Integer
Dim Seng(lo) As Integer
Randomize Timer
'
' - Costanti -
G = .0000000000667259# ' Costante gravitaz. universale
VC = 299792458 ' Velocita' luce
AL = VC * 31558149.5# ' Anno-luce
pr = 100 ' Precisione
pigreco = 3.14159265359#
'
' parametri satellite geostazionario
MT = 5.977D+24: RT = 6370000: Dsatg = 42170662
' parametri Sole-Terra
MS = 1.989D+30: RS = 695980000: DTerra = 149598500000#
'
' - Inizio -
Screen 9, , 0: _FullScreen: L = 7: C = 1: nc = 2
Cls: Locate 2, 20: Color 11: Print " NEWTON ": Color 2
Print " - Simulazione del moto di molti corpi celesti"
Print " " + String$(64, 196): Print Space$(46) + "(Premere un tasto)"
Window (0, lv)-(lo, 0)
GoSub comandi
Cls: PCopy 0, 1: qq = 1
'
parametri:
Cls: I1 = 0: I2 = 0
x = 0: y = pigreco: z = 0 ' angoli di Eulero
For N1 = 1 To nc: M0(N1) = 0: Next N1
Color 5
Locate 2, 65: Print " ": Locate 2, 1
Print "1) Satellite geostazionario "
Print "2) Sole-Terra "
Print "3) Random "
Print "4) Inserisci parametri "
100 sel$ = InKey$: If sel$ = "" Then 100
If Asc(sel$) < 49 Or Asc(sel$) > 52 Then 100
If sel$ = "1" Then
nc = 2: M0(1) = MT: R0(1) = RT: M0(2) = 1: R0(2) = 1
Mtot = M0(1) + M0(2)
dmax0(2) = Dsatg
Dist(1, 2) = dmax0(2): Dist(2, 1) = Dist(1, 2)
GoSub velorb
dirxy(1) = 0: dirxy(2) = 180: dirz(1) = 0: dirz(2) = 0
dq0 = 1.5: Mmax = 1: Dmax = 2
For N1 = 1 To nc: ud#(N1) = 1000: ud$(N1) = "Km": Next N1
um#(1) = MT: ur#(1) = RT: um#(2) = 1: ur#(2) = 1
um$(1) = "mt": ur$(1) = "rt": um$(2) = "Kg": ur$(2) = "metri"
dq = dq0: GoSub pargraf ' par. grafici
GoSub calcint ' calcola interv. tempo
GoTo 110
ElseIf sel$ = "2" Then
nc = 2: M0(1) = MS: R0(1) = RS: M0(2) = MT: R0(2) = RT
Mtot = M0(1) + M0(2)
dmax0(2) = DTerra
Dist(1, 2) = dmax0(2): Dist(2, 1) = Dist(1, 2)
GoSub velorb
dirxy(1) = 0: dirxy(2) = 180: dirz(1) = 0: dirz(2) = 0
dq0 = 1.5: Mmax = 1: Dmax = 2
For N1 = 1 To nc: ud#(N1) = 1000: ud$(N1) = "Km": Next N1
um#(1) = MS: ur#(1) = RS: um#(2) = MT: ur#(2) = RT
um$(1) = "ms": ur$(1) = "rs": um$(2) = "mt": ur$(2) = "rt"
dq = dq0: GoSub pargraf: GoSub calcint
GoTo 110
ElseIf sel$ = "3" Then GoTo 130
Else GoTo 130
End If
110 Locate 2, 1: Print "massa I astro ="; M0(1) / um#(1); um$(1); " "
Print "raggio I astro ="; R0(1) / ur#(1); ur$(1); " "
Print "massa 2 astro ="; M0(2) / um#(2); um$(2)
Print "raggio 2 astro ="; R0(2) / ur#(2); ur$(2)
Print "dim. quadro ="; dq
Print "distanza ="; dmax0(2) / 1000; "Km "
Print "dir.xy I astro = 180 gradi "
Print "dir.z I astro = 0 gradi "
Print "veloc. I astro ="; v(1) / 1000; "Km/sec "
Print "dir.xy 2 astro = 0 gradi "
Print "dir.z 2 astro = 0 gradi "
Print "veloc. 2 astro ="; v(2) / 1000; "Km/sec "
Print "interv.(sec) ="; it; "sec "
Locate 16, 1: Print " Confermi (s) ? "
120 A$ = InKey$: If A$ = "" Then 120
If A$ <> "n" Then 190
130 dq0 = 1
140 PCopy 1, 0: Locate 2, 1
L = 2: C = 27: Print "Numero astri ( max."; ncmax; "):"; nc
GoSub scrivi: nc = N
If nc < 2 Then nc = 2: GoTo 140
If nc > ncmax Then nc = ncmax: GoTo 140
If I1 Then dq = dq0: GoSub randomizza
PCopy 1, 0: Locate 2, 1
Print "Parametri (l'astro piu' massiccio diventa I astro)"
Mtot = 0
For N1 = 1 To nc
GoSub unit1
um#(N1) = um#: ur#(N1) = ur#: um$(N1) = um$: ur$(N1) = ur$
M0(N1) = um#(N1): R0(N1) = ur#(N1)
dmax0(N1) = 0: dirxy(N1) = 0: dirz(N1) = 0
170 Locate 8, 1
L = 8: C = 17: Print "massa"; N1; " ("; um$(N1); ") ="; M0(N1) / um#(N1);
Print Space$(23 - Len(Str$(M0(N1) / um#(N1))))
GoSub scrivi: M0(N1) = N * um#(N1)
If M0(N1) <= 0 Then M0(N1) = um#(N1): GoTo 170
M(N1) = M0(N1): Mtot = Mtot + M(N1)
180 L = 9: C = 18: Print "raggio"; N1; " ("; ur$(N1); ") ="; R0(N1) / ur#(N1);
Print Space$(23 - Len(Str$(R0(N1) / ur#(N1))))
GoSub scrivi: R0(N1) = N * ur#(N1)
If R0(N1) <= 0 Then R0(N1) = ur#(N1): Locate 7, 1: GoTo 180
R(N1) = R0(N1)
Lc = 11: GoSub angdir
PCopy 1, 0: Next N1
GoSub astromax: PCopy 1, 0
If nc = 2 And M0(1) = MT And M0(2) < MT Then GoSub qudist Else GoSub distmax
PCopy 1, 0
For N1 = 1 To nc
If nc = 2 Then GoSub velorb: GoTo 181
v(N1) = Sqr(G * (M0(Mmax) ^ 2) / (M0(Mmax) + M0(N1)) / dmax0(Dmax))
v(Mmax) = 0
181 GoSub veloc
Next N1
dq = dq0: GoSub dimquad ' dim. quadro schermo
GoSub interv ' precisa intervallo
Locate 18, 1
Print "Scegli assetto (n) ?"
182 A$ = InKey$: If A$ = "" Then 182
If A$ = "s" Then GoSub assetto: I1 = 1
'
' - Inizializzazione -
190 For N1 = 1 To nc
xx1(N1) = -1: yy1(N1) = -1: xx2(N1) = -1: yy2(N1) = -1
Next N1
200 Screen 9, , 1: Cls
210 Screen 9, , 0: PCopy 1, 0
If I1 Then 240
If I2 Then 260
220 x0(Mmax) = 0: y0(Mmax) = 0: z0(Max) = 0
For N1 = 1 To nc: If N1 = Mmax Then 230
If N1 <> Mmax Then AZ(N1) = pigreco / 2: EL(N1) = 0
x0(N1) = dmax0(N1) * Cos(AZ(N1)) * Cos(EL(N1))
If x0(N1) < .1# Then x0(N1) = 0
y0(N1) = dmax0(N1) * Sin(AZ(N1)) * Cos(EL(N1))
If y0(N1) < .1# Then y0(N1) = 0
z0(N1) = dmax0(N1) * Sin(EL(N1))
If z0(N1) < .1# Then z0(N1) = 0
230 Next N1
240 If diag1 Or diag2 Or diag3 Then PCopy 1, 0
If Nt = 1 Then Cls: PCopy 0, 1
For N1 = 1 To nc
M(N1) = M0(N1): R(N1) = R0(N1): Rg(N1) = R(N1) * kx
dz(N1) = dirz(N1) * pigreco / 180
vx(N1) = v(N1) * Cos(dz(N1)) * Cos(dirxy(N1) * pigreco / 180)
vy(N1) = v(N1) * Cos(dz(N1)) * Sin(dirxy(N1) * pigreco / 180)
vz(N1) = v(N1) * Sin(dz(N1))
vt(N1) = Sqr(vx(N1) ^ 2 + vy(N1) ^ 2 + vz(N1) ^ 2)
xx1(N1) = -1: yy1(N1) = -1: xx2(N1) = -1: yy2(N1) = -1
Next N1: GoSub astromax
x(Mmax) = x0(Mmax): y(Mmax) = y0(Mmax): z(Mmax) = z0(Mmax)
For N1 = 1 To nc: If N1 = Mmax Then 250
x(N1) = x0(N1): y(N1) = y0(N1): z(N1) = z0(N1)
Apo(N1) = 0: Per(N1) = dmax0(N1)
If nc = 2 Then AN = AZ(N1)
For N2 = 1 To nc: If N2 = N1 Or M(N2) = 0 Then 241
If fndist# Then Dist(N1, N2) = fndist#: Dist(N2, N1) = Dist(N1, N2)
If Nt = 2 Then pdist(N1, N2) = Dist(N1, N2): pdist(N2, N1) = pdist(N1, N2)
241 Next N2
250 Next N1
ao = 320.5: oo = 240.5 ' coord. centro schermo
t = 0: I1 = 0: I2 = 0: Nt = nc
pm = 0: primo = 0
fsd2 = 1 ' fattore scala diag. entr.
Epmax = 0: Epmin = -1D+300
Ecmax = 0: Ecmin = 1D+300
Etmax = 0: Etmin = -1D+300
'
' - Calcolo matematico -
260 vmax2 = 0
For N1 = 1 To nc: If M0(N1) = 0 Then 261
If vt(N1) > vmax2 Then vmax2 = vt(N1)
261 Next N1
' - Calcolo precisione tempo -
If vmax2 > vmax1 Then dt = Abs(it / pr * vmax1 / vmax2) Else dt = Abs(it / pr)
For k = 1 To pr
For N1 = 1 To nc: If M(N1) = 0 Then 280
For N2 = 1 To nc: If N2 = N1 Or M(N2) = 0 Then 270
If fndist# Then Dist(N1, N2) = fndist#: Dist(N2, N1) = Dist(N1, N2)
If Nt = 2 Then pdist(N1, N2) = Dist(N1, N2): pdist(N2, N1) = pdist(N1, N2)
270 Next N2
280 Next N1
For N1 = 1 To nc: If M(N1) = 0 Then 300
xa = 0: ya = 0: za = 0
If Nt > 1 Then
For N2 = 1 To nc: If N2 = N1 Or M(N2) = 0 Then 290
acc = G * M(N2) / Dist(N1, N2) ^ 3
xa = xa + acc * (x(N2) - x(N1))
ya = ya + acc * (y(N2) - y(N1))
za = za + acc * (z(N2) - z(N1))
290 Next N2
vx(N1) = vx(N1) + xa * dt
vy(N1) = vy(N1) + ya * dt
vz(N1) = vz(N1) + za * dt
vt(N1) = Sqr(vx(N1) ^ 2 + vy(N1) ^ 2 + vz(N1) ^ 2)
End If
xf(N1) = x(N1) + vx(N1) * dt
yf(N1) = y(N1) + vy(N1) * dt
zf(N1) = z(N1) + vz(N1) * dt
300 Next N1
For N1 = 1 To nc: If M(N1) = 0 Then 330
x(N1) = xf(N1): y(N1) = yf(N1): z(N1) = zf(N1)
If nc = 2 Then
AP = AN: If x(2) = 0 Then AN = pigreco / 2 Else AN = Atn(y(2) / x(2))
End If
'
' - Controlli -
For N2 = 1 To nc: If N2 = N1 Or M(N2) = 0 Then 320
If fndist# Then Dist(N1, N2) = fndist#: Dist(N2, N1) = Dist(N1, N2)
If fndmax# Then distmax = fndmax#
If N1 = Mmax Then 310
If distmax > Apo(N1) Then Apo(N1) = distmax
If distmax < Per(N1) Then Per(N1) = distmax
SM(N1) = (Apo(N1) + Per(N1)) / 2
310 If Dist(N1, N2) > R(N1) + R(N2) Then 320
'
' altrimenti...
'
' - Collisione-fusione -
Locate 2, 65: Color 15
Sound 200, .1: Print "C R A S H !"
Locate 4, 1: Color 3
Print "Tempo ="; t; "s "
Print "Num. corpi ="; Nt
Print: Print "Massa 1 ="; M(N1); "Kg"
Print "Vt 1 =";
If vt(N1) > 1000 Then Print vt(N1) / 1000; "Km/s " Else Print vt(N1); "m/s "
Print: Print "Massa 2 ="; M(N2); "Kg"
Print "Vt 2 =";
If vt(N2) > 1000 Then Print vt(N2) / 1000; "Km/s " Else Print vt(N2); "m/s "
If Nt = 2 Then
Print: Print "En. cin. scontro = ";
Ecs = (M(N1) * vt(N1) ^ 2 + M(N2) * vt(N2) ^ 2) / 2: Print Ecs; "Joule ";
End If
Do: Loop While InKey$ = ""
Cls: PCopy 0, 1: Nt = Nt - 1
m1 = N1: m2 = N2: If M(N2) > M(N1) Then Swap m1, m2
den = M(m1) * 3 / 4 / pigreco / R(m1) ^ 3
vx(m1) = (M(m1) * vx(m1) + M(m2) * vx(m2)) / (M(m1) + M(m2)): vx(m2) = 0
vy(m1) = (M(m1) * vy(m1) + M(m2) * vy(m2)) / (M(m1) + M(m2)): vy(m2) = 0
vz(m1) = (M(m1) * vz(m1) + M(m2) * vz(m2)) / (M(m1) + M(m2)): vz(m2) = 0
M(m1) = M(m1) + M(m2): M(m2) = 0
R(m1) = ((M(m1) / den) * 3 / 4 / pigreco) ^ (1 / 3)
Rg(m1) = R(m1) * kx
GoSub astromax: pm = 0: primo = 0
'
320 Next N2
330 Next N1
Next k: t = t + it * vmax2 / vmax1
'
' calcolo energia istantanea, massima, minima e media
Ep = 0: Ec = 0
For N1 = 1 To nc: If M(N1) = 0 Then 350
For N2 = 1 To nc: If N2 = N1 Or M(N2) = 0 Then 340
If fndist# Then
Ep(N1, N2) = -G * M(N1) * M(N2) / fndist#
Ep = Ep + Ep(N1, N2)
End If
340 Next N2
Ec(N1) = vt(N1) ^ 2 * M(N1) / 2: Ec = Ec + Ec(N1)
350 Next N1
Ep = Ep / 2: Etot = Ep + Ec
If Abs(Ep) > Abs(Epmax) Then Epmax = Ep
If Abs(Ep) < Abs(Epmin) Then Epmin = Ep
If Ec > Ecmax Then Ecmax = Ec
If Ec < Ecmin Then Ecmin = Ec
If Abs(Etot) > Abs(Etmax) Then Etmax = Etot
If Abs(Etot) < Abs(Etmin) Then Etmin = Etot
Epmed = (Epmax + Epmin) / 2
Ecmed = (Ecmax + Ecmin) / 2
Etmed = (Etmax + Etmin) / 2
Sen = Etot / Ec ' entr. energetica
'
' fsd = fattore scala diagrammi
If primo = 0 Then
If Epmin > -1D+300 Then
fsd1 = (lv - 1) / Abs(Epmin) / 10
Else fsd1 = (lv - 1) / Abs(Ep) / 10
End If
If Ep = 0 Then fsd1 = (lv - 1) / Ec / 2
primo = 1
End If
Epg = Ep * fsd1 + (lv - 1) / 2
If Epg > lv - 1 Or Epg < 0 Then fsd1 = fsd1 / 2: pm = lo
Epmedg = Epmed * fsd1 + (lv - 1) / 2
If Epmedg > lv - 1 Or Epmedg < 0 Then fsd1 = fsd1 / 2: pm = lo
Ecg = Ec * fsd1 + (lv - 1) / 2
If Ecg > lv - 1 Or Ecg < 0 Then fsd1 = fsd1 / 2: pm = lo
Ecmedg = Ecmed * fsd1 + (lv - 1) / 2
If Ecmedg > lv - 1 Or Ecmedg < 0 Then fsd1 = fsd1 / 2: pm = lo
Etg = Etot * fsd1 + (lv - 1) / 2
If Etg > lv - 1 Or Etg < 0 Then fsd1 = fsd1 / 2: pm = lo
Etmedg = Etmed * fsd1 + (lv - 1) / 2
If Etmedg > lv - 1 Or Etmedg < 0 Then fsd1 = fsd1 / 2: pm = lo
Seng = Sen * (lv - 1) / 4 * fsd2 + (lv - 1) / 2
If Seng > lv - 1 Or Seng < 0 Then fsd2 = fsd2 / 2: pm = lo
pm = pm + 1
If pm > lo / 6 Then
pm = 0: If diag1 Or diag2 Or diag3 Then Cls: PCopy 1, 0
End If
Epg(pm) = Epg: Epmedg(pm) = Epmedg
Ecg(pm) = Ecg: Ecmedg(pm) = Ecmedg
Etg(pm) = Etg: Etmedg(pm) = Etmedg
Seng(pm) = Seng
'
GoSub grafica ' <- routine grafica
'
A$ = InKey$: If A$ = "" Then 260
If A$ = "e" Then L = 3: C = 3: GoSub comandi: I2 = 1: GoTo 210
If A$ = "p" Then GoTo parametri
If A$ = "q" Then GoSub dimquad: GoTo 190
If A$ = "d" Then
If nc = 2 And M0(2) < MT Then GoSub qudist Else GoSub distmax
dq = dq0: GoSub pargraf: GoTo 190
End If
If A$ = "v" Then
For N1 = 1 To nc: GoSub veloc: Next N1
dq = dq0: GoSub pargraf: I1 = 1: GoTo 190
End If
If A$ = "g" Then
I2 = 1: For N1 = 1 To nc: Lc = 21: GoSub angdir: Next N1
dq = dq0: GoSub pargraf: I1 = 1: GoTo 190
End If
If A$ = "a" Then I2 = 1: GoSub assetto: I1 = 1: GoTo 190
If A$ = "i" Then GoSub interv: I2 = 1: GoTo 190
If A$ = "t" Then
For N1 = 1 To nc: vx(N1) = -vx(N1): vy(N1) = -vy(N1): Next N1
it = -it
End If
If A$ = "r" Then I1 = 1: GoSub randomizza
If A$ = "n" Then dq = dq0: GoSub pargraf: I1 = 1: GoTo 200
If A$ = "c" Then Cls: PCopy 0, 1
If A$ = "h" Then GoSub 4000: GoTo 260
If A$ = "<" Then
dq = dq * 2
GoSub pargraf: I2 = 1: GoTo 190
End If
If A$ = ">" Then
dq = dq / 2: If dq < .001 Then dq = .001
GoSub pargraf: I2 = 1: GoTo 190
End If
If Asc(A$) > 47 And Asc(A$) < 58 Then GoSub dati: I2 = 1: GoTo 210
If A$ = " " Then GoSub globali: I2 = 1: GoTo 210
If A$ = "!" Then
diag1 = -(diag1 = 0): diag2 = 0
pm = lo
Cls: PCopy 1, 0
End If
If Asc(A$) = 34 Then
diag2 = -(diag2 = 0): diag1 = 0
pm = lo
Cls: PCopy 1, 0
End If
If A$ = "�" Then
diag3 = -(diag3 = 0): diag1 = 0: diag2 = 0
pm = lo
Cls: PCopy 1, 0
End If
If A$ = Chr$(0) + Chr$(59) Or A$ = Chr$(0) + Chr$(60) Or A$ = Chr$(0) + Chr$(61) Or A$ = Chr$(0) + Chr$(62) Then
If A$ = Chr$(0) + Chr$(59) Then qq = 1
If A$ = Chr$(0) + Chr$(60) Then qq = 2
If A$ = Chr$(0) + Chr$(61) Then qq = 3
dq = dq0: GoSub pargraf: I2 = 1: GoTo 190
End If
If A$ = "x" Or A$ = "X" Or A$ = "y" Or A$ = "Y" Or A$ = "z" Or A$ = "Z" Then
If A$ = "x" Then x = x + 5 * pigreco / 180
If A$ = "X" Then x = x - 5 * pigreco / 180
If A$ = "y" Then y = y + 5 * pigreco / 180
If A$ = "Y" Then y = y - 5 * pigreco / 180
If A$ = "z" Then z = z - 5 * pigreco / 180
If A$ = "Z" Then z = z + 5 * pigreco / 180
dq = dq0: GoSub pargraf: I2 = 1: GoTo 190
End If
If Len(A$) >= 2 Then
AK = Asc(Right$(A$, 1))
If AK = 72 Then oo = oo + 10
If AK = 80 Then oo = oo - 10
If AK = 75 Then ao = ao - 10
If AK = 77 Then ao = ao + 10
dq = dq0: GoSub pargraf: I2 = 1: GoTo 190
End If
If A$ = Chr$(27) Then Screen 0: End
GoTo 260
'
' - Routines -
grafica:
' vista panoramica
If qq = 1 Then
Screen 9, , 0
Locate 2, 1: Color 15: Print "Vista panoramica"
For N1 = 1 To nc: If M(N1) = 0 Then 1001
If xx1(N1) > 0 And xx1(N1) < lo And yy1(N1) > 0 And yy1(N1) < lv Then
For scr = 0 To 1
Screen 9, , scr, 0
Circle (xx1(N1), yy1(N1)), Rg(N1), 0
If nc = 2 Then
If Sqr((xx1(1) - xx1(2)) ^ 2 + (yy1(1) - yy1(2)) ^ 2) > Rg(1) + Rg(2) Then
PSet (xx1(N1), yy1(N1)), 5
GoTo 1000
End If
If zz1(1) < zz1(2) Then
PSet (xx1(1), yy1(1)), 5
Else PSet (xx1(2), yy1(2)), 5
End If
End If
1000 Next scr
End If
1001 Next N1
1002 For N1 = 1 To nc: If M(N1) = 0 Then 1003
xx1(Mmax) = ((Cos(x) * Cos(z) + Sin(x) * Cos(y) * Sin(z)) * x(Mmax) + (-Sin(x) * Cos(z) + Cos(x) * Cos(y) * Sin(z)) * y(Mmax) + (Sin(y) * Sin(z)) * z(Mmax)) * kx + ao
yy1(Mmax) = ((-Cos(x) * Sin(z) - Sin(x) * Cos(y) * Cos(z)) * x(Mmax) + (Sin(x) * Sin(z) - Cos(x) * Cos(y) * Cos(z)) * y(Mmax) + (Sin(y) * Cos(z)) * z(Mmax)) * kx + oo
xx1(N1) = ((Cos(x) * Cos(z) + Sin(x) * Cos(y) * Sin(z)) * x(N1) + (-Sin(x) * Cos(z) + Cos(x) * Cos(y) * Sin(z)) * y(N1) + (Sin(y) * Sin(z)) * z(N1)) * kx + ao
yy1(N1) = ((-Cos(x) * Sin(z) - Sin(x) * Cos(y) * Cos(z)) * x(N1) + (Sin(x) * Sin(z) - Cos(x) * Cos(y) * Cos(z)) * y(N1) + (Sin(y) * Cos(z)) * z(N1)) * kx + oo
zz1(N1) = ((Sin(x) * Sin(y)) * x(N1) + (Cos(x) * Sin(y)) * y(N1) + Cos(y) * z(N1)) * kx + ao
If xx1(Mmax) < -1 Or xx1(Mmax) > lo Or yy1(Mmax) < -1 Or yy1(Mmax) > lv Then
If xx1(Mmax) < -1 Then ao = ao + lo / 2
If xx1(Mmax) > lo Then ao = ao - lo / 2
If yy1(Mmax) < -1 Then oo = oo + lv / 2
If yy1(Mmax) > lv Then oo = oo - lv / 2
Screen 9, , 0, 0: Cls: PCopy 0, 1: GoTo 1002
End If
1003 Next N1
GoSub zprof1
For N1 = 1 To nc: If M(prof(N1)) = 0 Then 1006
If xx1(N1) < -1 Or xx1(N1) > lo Or yy1(N1) < -1 Or yy1(N1) > lv Then
dq = dq * 2
GoSub pargraf: I2 = 1: GoTo 190
End If
For N2 = 2 To nc: If M(prof(N2)) = 0 Then 1005
For scr = 0 To 1
Screen 9, , scr, 0
col = 15: If nc > 2 And nc < 14 Then col = N1 + 1
If M(prof(N1)) >= MT Then col = 9
If M(prof(N1)) >= MS Then col = 14
If M(prof(N2)) >= MT Then col = 9
If M(prof(N2)) >= MS Then col = 14
If N1 = Mmax And sel$ = "2" Then col = 14
If N1 = Mmax And sel$ = "3" Then col = 15
If Sqr((xx1(prof(N1)) - xx1(prof(N2))) ^ 2 + (yy1(prof(N1)) - yy1(prof(N2))) ^ 2) > Rg(prof(N1)) + Rg(prof(N2)) Then
Circle (xx1(prof(N1)), yy1(prof(N1))), Rg(prof(N1)), col
GoTo 1004
End If
If zz1(prof(N1)) < zz1(prof(N2)) Then
If Rg(prof(N2)) >= Rg(prof(N1)) Then
Circle (xx1(prof(N2)), yy1(prof(N2))), Rg(prof(N2)), col
End If
Circle (xx1(prof(N1)), yy1(prof(N1))), Rg(prof(N1)), col
Else
If Rg(prof(N1)) >= Rg(prof(N2)) Then
Circle (xx1(prof(N1)), yy1(prof(N1))), Rg(prof(N1)), col
End If
Circle (xx1(prof(N2)), yy1(prof(N2))), Rg(prof(N2)), col
End If
1004 Next scr
1005 Next N2
1006 Next N1
Screen 9, , 0
Locate 21, 69: Color 15: Print "x ="; CInt(x * 180 / pigreco);
Locate 22, 69: Color 15: Print "y ="; CInt(y * 180 / pigreco - 90);
Locate 23, 69: Color 15: Print "z ="; CInt(z * 180 / pigreco);
End If

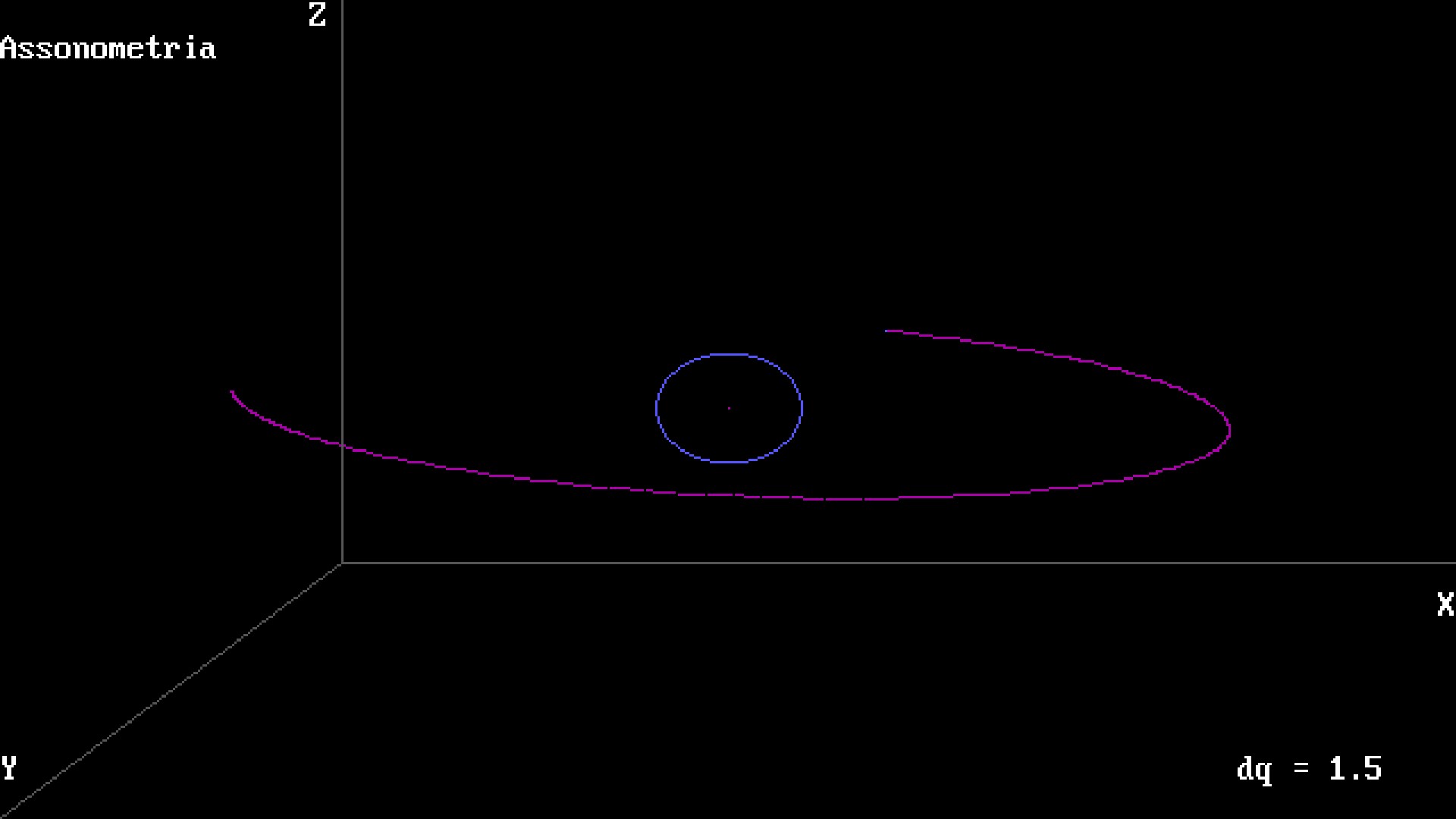

' assonometria
If qq = 2 Then
Screen 9, , 0
Locate 2, 1: Color 15: Print "Assonometria"
Locate 24: Print "Y";
Locate 19, 80: Print "X"
Locate 1, 18: Print "Z"
Line (0, 0)-(150, 150), 8
Line (150, 150)-(150, lv), 8
Line (150, 150)-(lo, 150), 8
For N1 = 1 To nc: If M(N1) = 0 Then 1041
If xx1(N1) > 0 And xx1(N1) < lo And yy1(N1) > 0 And yy1(N1) < lv Then
For scr = 0 To 1
Screen 9, , scr, 0
Circle (xx1(N1), yy1(N1)), Rg(N1), 0
If nc = 2 Then
If Sqr((xx1(1) - xx1(2)) ^ 2 + (yy1(1) - yy1(2)) ^ 2) > Rg(1) + Rg(2) Then
PSet (xx1(N1), yy1(N1)), 5
GoTo 1040
End If
If zz1(1) < zz1(2) Then
PSet (xx1(1), yy1(1)), 5
Else PSet (xx1(2), yy1(2)), 5
End If
End If
1040 Next scr
End If
1041 Next N1
1042 For N1 = 1 To nc: If M(N1) = 0 Then 1043
xx1(Mmax) = (x(Mmax) - (y(Mmax) * .25)) * kx + ao
yy1(Mmax) = (z(Mmax) + (y(Mmax) * .25)) * kx + oo
xx1(N1) = (x(N1) - (y(N1) * .25)) * kx + ao
yy1(N1) = (z(N1) + (y(N1) * .25)) * kx + oo
zz1(N1) = y(N1) * kx + ao
If xx1(Mmax) < -1 Or xx1(Mmax) > lo Or yy1(Mmax) < -1 Or yy1(Mmax) > lv Then
If xx1(Mmax) < -1 Then ao = ao + lo / 2
If xx1(Mmax) > lo Then ao = ao - lo / 2
If yy1(Mmax) < -1 Then oo = oo + lv / 2
If yy1(Mmax) > lv Then oo = oo - lv / 2
Screen 9, , 0, 0: Cls: PCopy 0, 1: GoTo 1042
End If
1043 Next N1
GoSub zprof1
For N1 = 1 To nc: If M(prof(N1)) = 0 Then 1046
If xx1(N1) < -1 Or xx1(N1) > lo Or yy1(N1) < -1 Or yy1(N1) > lv Then
dq = dq * 2
GoSub pargraf: I2 = 1: GoTo 190
End If
For N2 = 2 To nc: If M(prof(N2)) = 0 Then 1045
For scr = 0 To 1
Screen 9, , scr, 0
col = 15: If nc > 2 And nc < 14 Then col = N1 + 1
If M(prof(N1)) >= MT Then col = 9
If M(prof(N1)) >= MS Then col = 14
If M(prof(N2)) >= MT Then col = 9
If M(prof(N2)) >= MS Then col = 14
If N1 = Mmax And sel$ = "2" Then col = 14
If N1 = Mmax And sel$ = "3" Then col = 15
If Sqr((xx1(prof(N1)) - xx1(prof(N2))) ^ 2 + (yy1(prof(N1)) - yy1(prof(N2))) ^ 2) > Rg(prof(N1)) + Rg(prof(N2)) Then
Circle (xx1(prof(N1)), yy1(prof(N1))), Rg(prof(N1)), col
GoTo 1044
End If
If zz1(prof(N1)) < zz1(prof(N2)) Then
If Rg(prof(N2)) >= Rg(prof(N1)) Then
Circle (xx1(prof(N2)), yy1(prof(N2))), Rg(prof(N2)), col
End If
Circle (xx1(prof(N1)), yy1(prof(N1))), Rg(prof(N1)), col
Else
If Rg(prof(N1)) >= Rg(prof(N2)) Then
Circle (xx1(prof(N1)), yy1(prof(N1))), Rg(prof(N1)), col
End If
Circle (xx1(prof(N2)), yy1(prof(N2))), Rg(prof(N2)), col
End If
1044 Next scr
1045 Next N2
1046 Next N1
End If
' proiezioni x-y e x-z
If qq = 3 Then
Screen 9, , 0
Locate 2, 2: Color 15: Print "Proiezione x-y e x-z"
Color 5
Locate 1, 2: Print "Y"
Locate 25, 36: Print "X";
Locate 1, 42: Print "Z"
Locate 25, 80: Print "X";
Line (1, lv)-(1, 1), 8
Line -(280, 1), 8
Line (320, lv)-(320, 1), 8
Line -(630, 1), 8
For N1 = 1 To nc: If M(N1) = 0 Then 1011
If xx1(N1) > 0 And xx1(N1) < 315 And yy1(N1) > 0 And yy1(N1) < lv Then
For scr = 0 To 1
Screen 9, , scr, 0
Circle (xx1(N1), yy1(N1)), Rg(N1), 0
If nc = 2 Then
If Sqr((xx1(1) - xx1(2)) ^ 2 + (yy1(1) - yy1(2)) ^ 2) > Rg(1) + Rg(2) Then
PSet (xx1(N1), yy1(N1)), 5
GoTo 1010
End If
If zz1(1) < zz1(2) Then
PSet (xx1(1), yy1(1)), 5
Else PSet (xx1(2), yy1(2)), 5
End If
End If
1010 Next scr
End If
1011 Next N1
For N1 = 1 To nc: If M(N1) = 0 Then 1013
If xx2(N1) > 320 And xx2(N1) < lo And yy2(N1) > 0 And yy2(N1) < lv Then
For scr = 0 To 1
Screen 9, , scr, 0
Circle (xx2(N1), yy2(N1)), Rg(N1), 0
If nc = 2 Then
If Sqr((xx2(1) - xx2(2)) ^ 2 + (yy2(1) - yy2(2)) ^ 2) > Rg(1) + Rg(2) Then
PSet (xx2(N1), yy2(N1)), 5
GoTo 1012
End If
If zz2(1) < zz2(2) Then
PSet (xx2(1), yy2(1)), 5
Else PSet (xx2(2), yy2(2)), 5
End If
End If
1012 Next scr
End If
1013 Next N1
1014 For N1 = 1 To nc: If M(N1) = 0 Then 1015
xx1(Mmax) = x(Mmax) * kx + ao / 2
yy1(Mmax) = y(Mmax) * kx + oo
xx1(N1) = x(N1) * kx + ao / 2
yy1(N1) = y(N1) * kx + oo
zz1(N1) = z(N1) * kx + ao
If xx1(Mmax) < -1 Or xx1(Mmax) > 315 Or yy1(Mmax) < -1 Or yy1(Mmax) > lv Then
If xx1(Mmax) < -1 Then ao = ao + lo / 4
If xx1(Mmax) > 315 Then ao = ao - lo / 4
If yy1(Mmax) < -1 Then oo = oo + lv / 2
If yy1(Mmax) > lv Then oo = oo - lv / 2
Screen 9, , 0, 0: Cls: PCopy 0, 1: GoTo 1015
End If
1015 Next N1
GoSub zprof1
For N1 = 1 To nc: If M(prof(N1)) = 0 Then 1018
If xx1(N1) < -1 Or xx1(N1) > 315 Or yy1(N1) < -1 Or yy1(N1) > lv Then
dq = dq * 2
GoSub pargraf: I2 = 1: GoTo 190
End If
For N2 = 2 To nc: If M(prof(N2)) = 0 Then 1017
For scr = 0 To 1
Screen 9, , scr, 0
col = 15: If nc > 2 And nc < 14 Then col = N1 + 1
If M(prof(N1)) >= MT Then col = 9
If M(prof(N1)) >= MS Then col = 14
If M(prof(N2)) >= MT Then col = 9
If M(prof(N2)) >= MS Then col = 14
If N1 = Mmax And sel$ = "2" Then col = 14
If N1 = Mmax And sel$ = "3" Then col = 15
If Sqr((xx1(prof(N1)) - xx1(prof(N2))) ^ 2 + (yy1(prof(N1)) - yy1(prof(N2))) ^ 2) > Rg(prof(N1)) + Rg(prof(N2)) Then
Circle (xx1(prof(N1)), yy1(prof(N1))), Rg(prof(N1)), col
GoTo 1016
End If
If zz1(prof(N1)) < zz1(prof(N2)) Then
If Rg(prof(N2)) >= Rg(prof(N1)) Then
Circle (xx1(prof(N2)), yy1(prof(N2))), Rg(prof(N2)), col
End If
Circle (xx1(prof(N1)), yy1(prof(N1))), Rg(prof(N1)), col
Else
If Rg(prof(N1)) >= Rg(prof(N2)) Then
Circle (xx1(prof(N1)), yy1(prof(N1))), Rg(prof(N1)), col
End If
Circle (xx1(prof(N2)), yy1(prof(N2))), Rg(prof(N2)), col
End If
1016 Next scr
1017 Next N2
1018 Next N1
1019 For N1 = 1 To nc: If M(N1) = 0 Then 1020
xx2(Mmax) = x(Mmax) * kx + ao * 1.5
yy2(Mmax) = z(Mmax) * kx + oo
xx2(N1) = x(N1) * kx + ao * 1.5
yy2(N1) = z(N1) * kx + oo
zz2(N1) = y(N1) * kx + ao
If xx2(Mmax) < 320 Or xx2(Mmax) > lo Or yy2(Mmax) < -1 Or yy2(Mmax) > lv Then
If xx2(Mmax) < 320 Then ao = ao + lo / 4
If xx2(Mmax) > lo Then ao = ao - lo / 4
If yy2(Mmax) < -1 Then oo = oo + lv / 2
If yy2(Mmax) > lv Then oo = oo - lv / 2
Screen 9, , 0, 0: Cls: PCopy 0, 1: GoTo 1020
End If
1020 Next N1
GoSub zprof2
For N1 = 1 To nc: If M(prof(N1)) = 0 Then 1023
If xx2(prof(N1)) < 320 Or xx2(prof(N1)) > lo Or yy2(prof(N1)) < -1 Or yy2(prof(N1)) > lv Then
dq = dq * 2
GoSub pargraf: I2 = 1: GoTo 190
End If
For N2 = 2 To nc: If M(prof(N2)) = 0 Then 1022
For scr = 0 To 1
Screen 9, , scr, 0
col = 15: If nc > 2 And nc < 14 Then col = N1 + 1
If M(prof(N1)) >= MT Then col = 9
If M(prof(N1)) >= MS Then col = 14
If M(prof(N2)) >= MT Then col = 9
If M(prof(N2)) >= MS Then col = 14
If N1 = Mmax And sel$ = "2" Then col = 14
If N1 = Mmax And sel$ = "3" Then col = 15
If Sqr((xx2(prof(N1)) - xx2(prof(N2))) ^ 2 + (yy2(prof(N1)) - yy2(prof(N2))) ^ 2) > Rg(prof(N1)) + Rg(prof(N2)) Then
Circle (xx2(prof(N1)), yy2(prof(N1))), Rg(prof(N1)), col
GoTo 1021
End If
If zz2(prof(N1)) < zz2(prof(N2)) Then
If Rg(prof(N2)) >= Rg(prof(N1)) Then
Circle (xx2(prof(N2)), yy2(prof(N2))), Rg(prof(N2)), col
End If
Circle (xx2(prof(N1)), yy2(prof(N1))), Rg(prof(N1)), col
Else
If Rg(prof(N1)) >= Rg(prof(N2)) Then
Circle (xx2(prof(N1)), yy2(prof(N1))), Rg(prof(N1)), col
End If
Circle (xx2(prof(N2)), yy2(prof(N2))), Rg(prof(N2)), col
End If
1021 Next scr
1022 Next N2
1023 Next N1
End If
Screen 9, , 0: Locate 24, 69: Color 15: Print "dq ="; dq;
' traccia ENERGIA TOTALE
If diag1 Then
Locate 25, 2: Color 15: Print "energia ";
Color 14: Print "potenziale";: Color 15: Print ", ";
Color 4: Print "cinetica";: Color 15: Print ", ";
Color 2: Print "totale";
Line (0, (lv - 1) / 2)-(lo, (lv - 1) / 2), 15
' en. potenziale istantanea
PSet (0, Epg(0)), 14: fl% = 1
For k = 1 To pm
xx = pm * 6
If fl% Then PSet (xx, Epg(k)), 14: fl% = 0
Line -(xx, Epg(k)), 14
Next
' en. cinetica istantanea
PSet (0, Ecg(0)), 4: fl% = 1
For k = 1 To pm
xx = k * 6
If fl% Then PSet (xx, Ecg(k)), 4: fl% = 0
Line -(xx, Ecg(k)), 4
Next
' en. totale istantanea
PSet (0, Etg(0)), 2: fl% = 1
For k = 1 To pm
xx = k * 6
If fl% Then PSet (xx, Etg(k)), 2: fl% = 0
Line -(xx, Etg(k)), 2
Next
End If
'
' traccia ENTROPIA ENERGETICA
If diag2 Then
Locate 25, 2: Color 9: Print "entropia energetica (Etot/Ecin)";
Line (0, (lv - 1) / 2)-(lo, (lv - 1) / 2), 15
' entr. en.
PSet (0, Seng(0)), 9: fl% = 1
For k = 1 To pm
xx = k * 6
If fl% Then PSet (xx, Seng(k)), 9: fl% = 0
Line -(xx, Seng(k)), 9
Next
End If
'
Return
'
dati:
' - Differenza angolare -
If nc = 2 Then
DA = Abs(AN - AP): If AN * AP > 0 Then 2000
If AP < 0 Then AP = AP + pigreco
DA = AP - AN
End If
' - Stampa dati -
2000 N1 = Val(A$): If N1 = 0 Then N1 = 10
Locate 3, 1
col = 5: If nc > 2 And nc < 14 Then col = N1 + 1
If M(N1) >= MT Then col = 9
If M(N1) >= MS Then col = 14
If N1 = Mmax And sel$ = "3" Then col = 15
Color col
If M(N1) = 0 Then 2040
Print "Tempo ="; t; "sec "
Print "Num. corpi ="; Nt
Print N1; ") Massa ="; M(N1); "Kg"
If N1 = Mmax Or M(Mmax) = 0 Then 2020
Print " Dist.I�astro =";: distmax = fndmax#
If distmax < 1000 Then Print distmax; "m"
If distmax < AL Then Print distmax / 1000; "Km" Else Print distmax / AL; "al"
Print " Apoastro =";
If Apo(N1) < 1000 Then Print Apo(N1); "m"
If Apo(N1) < AL Then Print Apo(N1) / 1000; "Km" Else Print Apo(N1) / AL; "al"
Print " Periastro =";
If Per(N1) < 1000 Then Print Per(N1); "m"
If Per(N1) < AL Then Print Per(N1) / 1000; "Km" Else Print Per(N1) / AL; "al"
If Nt > 2 Or M(Mmax) <> MT Then 2010
Print " Quota =";: Q = distmax - R(Mmax)
If Q >= 1000 Then Print Q / 1000; "Km" Else Print Q; "m"
Print " QApo =";: QApo = Apo(N1) - R(Mmax)
If QApo >= 1000 Then Print QApo / 1000; "Km" Else Print QApo; "m"
If Per(N1) <= 0 Then 2010
Print " QPer =";: QPer = Per(N1) - R(Mmax)
If QPer >= 1000 Then Print QPer / 1000; "Km" Else Print QPer; "m"
2010 Print " Dist. media =";
If SM(N1) < 1000 Then Print SM(N1); "m"
If SM(N1) < AL Then Print SM(N1) / 1000; "Km" Else Print SM(N1) / AL; "al"
2020 Locate , 6
Print "Vt =";
If vt(N1) >= 1000 Then Print vt(N1) / 1000; "Km/s " Else Print vt(N1); "m/s "
If nc > 2 Then 2030
Print " Va ="; DA / it; "rd/s "
Print " Vr ="; DA * (pdist(1, 2) + Dist(1, 2)) ^ 2 / 2 / it; "m�/s "
2030 A$ = InKey$: If A$ = "" Then 2030
If Asc(A$) > 47 And Asc(A$) < 58 Then PCopy 1, 0: GoTo 2000
If A$ = " " Then PCopy 1, 0: GoSub globali: I2 = 1: GoTo 210
2040 Return
'
globali:
Locate 2, 1: Color 3
Print "Tempo ="; t; "sec "
Print "Num. corpi ="; Nt
Color 14: Print " En. potenziale = "; Ep; "Joule "
Color 4: Print " En. cinetica = "; Ec
Color 2: Print " En. totale = "; Etot
Color 15
Print " En. pot. media = "; Epmed; "Joule "
Print " En. cin. media = "; Ecmed
Print " En. tot. media = "; Etmed
Color 9: Print " Entropia (Etot/Ecin) = "; Sen;
3000 A$ = InKey$: If A$ = "" Then 3000
If Asc(A$) > 47 And Asc(A$) < 58 Then PCopy 1, 0: GoTo 2000
Return
'
comandi:
Color 6: Locate L, C: Print " Comandi:"
Locate , C: Print "[e] elenco comandi"
Locate , C: Print "[p] parametri"
Locate , C: Print "[q] dim. quadro"
Locate , C: Print "[d] distanza/quota"
Locate , C: Print "[v] velocit�"
Locate , C: Print "[g] angolo direz."
Locate , C: Print "[a] assetto"
Locate , C: Print "[i] intervallo tempo"
Locate , C: Print "[t] inverti tempo"
Locate , C: Print "[r] randomizza"
Locate , C: Print "[n] di nuovo"
Locate , C: Print "[c] pulisci schermo"
Locate , C: Print "[</>] aum./rid. dim. quadro"
Locate , C: Print "[" + Chr$(27) + Chr$(18) + Chr$(26) + "] sposta fin. schermo"
Locate , C: Print "[h] halt"
Locate L + 1, C + 31: Print "[1-0] dati analitici (per max. 10 corpi)"
Locate , C + 31: Print "[ ] dati globali"
Locate , C + 31: Print "[SH+1] mostra/nascondi diagr. energia istant."
Locate , C + 31: Print "[SH+2] mostra/nascondi diagr. entropia"
Locate , C + 31: Print "[F1] vista panoramica"
Locate , C + 31: Print "[F2] assonometria"
Locate , C + 31: Print "[F3] proiezioni x-y e x-z"
Locate , C + 31: Print "[x] ruota x in senso antiorario"
Locate , C + 31: Print "[X] ruota x in senso orario"
Locate , C + 31: Print "[y] ruota y in senso antiorario"
Locate , C + 31: Print "[Y] ruota y in senso orario"
Locate , C + 31: Print "[z] ruota z in senso antiorario"
Locate , C + 31: Print "[Z] ruota z in senso orario"
Locate , C + 31: Print "[ESC] fine";
GoSub 4000
Return
'
4000 A$ = InKey$: If A$ = "" Then 4000
If A$ = Chr$(27) Then Screen 0: End
Return
'
unit1:
Locate 4, 1: Print "unita' di massa:"
Print "1) Masse terrestri "
Print "2) Masse solari "
Print "3) Kg "
5000 A$ = InKey$: If A$ = "" Then 5000
If Asc(A$) < 49 Or Asc(A$) > 52 Then 5000
If A$ = "1" Then
um# = MT: um$ = "mt"
ElseIf A$ = "2" Then um# = MS: um$ = "ms"
Else um# = 1: um$ = "Kg"
End If
Locate 9, 1: Print "unita' di raggio:"
Print "1) Raggi terrestri "
Print "2) Raggi solari "
Print "3) Km "
Print "4) Anni-luce "
5010 A$ = InKey$: If A$ = "" Then 5010
If Asc(A$) < 49 Or Asc(A$) > 52 Then 5010
If A$ = "1" Then
ur# = RT: ur$ = "rt"
ElseIf A$ = "2" Then ur# = RS: ur$ = "rs"
ElseIf A$ = "3" Then ur# = 1000: ur$ = "Km"
Else ur# = AL: ur$ = "al"
End If: PCopy 1, 0
Return
'
unit2:
PCopy 1, 0
Locate 3, 1: Print "unita' di distanza:"
Print "1) Raggi terrestri "
Print "2) Raggi solari "
Print "3) Km "
Print "4) Anni-luce "
5020 A$ = InKey$: If A$ = "" Then 5020
If Asc(A$) < 49 Or Asc(A$) > 52 Then 5020
If A$ = "1" Then
ud# = RT: ud$ = "rt"
ElseIf A$ = "2" Then ud# = RS: ud$ = "rs"
ElseIf A$ = "3" Then ud# = 1000: ud$ = "Km"
Else ud# = AL: ud$ = "al"
End If: PCopy 1, 0
Return
'
assetto:
6000 Cls: Locate 2, 1
Print " Precisazione distanza dal I astro "
Print " (piano x-y): "
Locate 5, 1
gx = lo / dmax0(Dmax) / 2 / 2: Rg(Mmax) = R0(Mmax) * gx
xx1(Mmax) = 320: yy1(Mmax) = 240: yy2(Mmax) = 240
Circle (xx1(Mmax), yy1(Mmax)), Rg(Mmax), 15
For N1 = 1 To nc: If N1 = Mmax Then 6020
Rg(N1) = R0(N1) * gx
If xx1(N1) < 0 Or xx1(N1) > lo Then 6010
If yy1(N1) < 0 Or yy1(N1) > lv Then 6010
Circle (xx1(N1), yy1(N1)), Rg(N1), 0
If N1 <> Mmax Then AZ(N1) = pigreco / 2: EL(N1) = 0
6010 x0(N1) = dmax0(N1) * Cos(AZ(N1)) * Cos(EL(N1))
If Abs(x0(N1)) < .1# Then x0(N1) = 0
y0(N1) = dmax0(N1) * Sin(AZ(N1)) * Cos(EL(N1))
If Abs(y0(N1)) < .1# Then y0(N1) = 0
xx1(N1) = x0(N1) * gx + 320.5: yy1(N1) = y0(N1) * gx + 240.5
If xx1(N1) < 0 Or xx1(N1) > lo Then 6020
If yy1(N1) < 0 Or yy1(N1) > lv Then 6020
Circle (xx1(N1), yy1(N1)), Rg(N1), 15
Print "Dist."; N1; "="; dmax0(N1) / ud#(N1); ud$(N1);
Print Space$(25 - Len(Str$(dmax0(N1) / ud#(N1))))
6020 Next N1
Locate 20, 1: Print " Confermi (s) ? "
6030 A$ = InKey$: If A$ = "" Then 6030
If A$ <> "n" Then 6060
Dmax = 1: For N1 = 1 To nc: If N1 = Mmax Then 6050
6040 Locate 4, 1: L = 4: C = 11
Print "Dist."; N1; "="; dmax0(N1) / ud#(N1); ud$(N1);
Print Space$(25 - Len(Str$(dmax0(N1) / ud#(N1))))
GoSub scrivi: If N > 0 Then dmax0(N1) = N * ud#(N1) Else GoTo 6040
If dmax0(N1) > dmax0(Dmax) Then Dmax = N1
6050 Next N1: GoTo 6000
6060 Cls: Locate 2, 1
Print " Inserimento azimut (piano x-y): "
Print " [" + Chr$(27) + Chr$(26) + "] - poi: [Invio]"
Circle (xx1(Mmax), yy1(Mmax)), Rg(Mmax), 15
For N1 = 1 To nc: If N1 = Mmax Then 6130
6070 If AZ(N1) < 0 Then AZ(N1) = AZ(N1) + 2 * pigreco
If AZ(N1) > 2 * pigreco Then AZ(N1) = AZ(N1) - 2 * pigreco
x0(N1) = dmax0(N1) * Cos(AZ(N1)) '* COS(EL(N1))
If Abs(x0(N1)) < .1# Then x0(N1) = 0
y0(N1) = dmax0(N1) * Sin(AZ(N1)) '* COS(EL(N1))
If Abs(y0(N1)) < .1# Then y0(N1) = 0
xx1(N1) = x0(N1) * gx + 320.5: yy1(N1) = y0(N1) * gx + 240.5
If xx1(N1) < 0 Or xx1(N1) > lo Then 6080
If yy1(N1) < 0 Or yy1(N1) > lv Then 6080
Circle (xx1(N1), yy1(N1)), Rg(N1), 15
6080 Locate 10, 1
Print " Az."; N1; "= "; CInt(AZ(N1) * 180 / pigreco); " gradi "
A$ = InKey$
If A$ = Chr$(13) Then 6090
If Len(A$) < 2 Then 6070
AK = Asc(Right$(A$, 1))
If AK = 75 Then AZ(N1) = AZ(N1) - (AZ(N1) >= -2 * pigreco) * pigreco / 180
If AK = 77 Then AZ(N1) = AZ(N1) + (AZ(N1) <= 2 * pigreco) * pigreco / 180
If xx1(N1) < 0 Or xx1(N1) > lo Then 6070
If yy1(N1) < 0 Or yy1(N1) > lv Then 6070
Circle (xx1(N1), yy1(N1)), Rg(N1), 0
GoTo 6070
6090 Locate 9, 1: Print " Precisa: ": L = 10: C = 11
GoSub scrivi: AZ(N1) = N * pigreco / 180
If xx1(N1) < 0 Or xx1(N1) > lo Then 6100
If yy1(N1) < 0 Or yy1(N1) > lv Then 6100
Circle (xx1(N1), yy1(N1)), Rg(N1), 0
6100 x0(N1) = dmax0(N1) * Cos(AZ(N1)) * Cos(EL(N1))
If Abs(x0(N1)) < .1# Then x0(N1) = 0
y0(N1) = dmax0(N1) * Sin(AZ(N1)) * Cos(EL(N1))
If Abs(y0(N1)) < .1# Then y0(N1) = 0
xx1(N1) = x0(N1) * gx + 320.5: yy1(N1) = y0(N1) * gx + 240.5
If xx1(N1) < 0 Or xx1(N1) > lo Then 6110
If yy1(N1) < 0 Or yy1(N1) > lv Then 6110
Circle (xx1(N1), yy1(N1)), Rg(N1), 15
6110 Locate 20, 1: Print " Confermi (s) ? "
6120 A$ = InKey$: If A$ = "" Then 6120
If A$ = "n" Then 6070
6130 Next N1
6140 Cls: Locate 2, 1
Print " Inserimento elevazione (piano x-z): "
Print " [" + Chr$(27) + Chr$(26) + "] - poi: [Invio]"
Circle (xx1(Mmax), yy2(Mmax)), Rg(Mmax), 15
For N1 = 1 To nc: If N1 = Mmax Then 6210
6150 If EL(N1) < 0 Then EL(N1) = EL(N1) + 2 * pigreco
If EL(N1) > 2 * pigreco Then EL(N1) = EL(N1) - 2 * pigreco
x0(N1) = dmax0(N1) * Cos(EL(N1))
If Abs(x0(N1)) < .1# Then x0(N1) = 0
z0(N1) = dmax0(N1) * Sin(EL(N1))
If Abs(z0(N1)) < .1# Then z0(N1) = 0
xx1(N1) = x0(N1) * gx + 320.5: yy2(N1) = z0(N1) * gx + 240.5
If xx1(N1) < 0 Or xx1(N1) > lo Then 6160
If yy2(N1) < 0 Or yy2(N1) > lv Then 6160
Circle (xx1(N1), yy2(N1)), Rg(N1), 15
6160 Locate 10, 1
Print " El."; N1; "= "; CInt(EL(N1) * 180 / pigreco); " gradi "
A$ = InKey$
If A$ = Chr$(13) Then 6170
If Len(A$) < 2 Then 6150
AK = Asc(Right$(A$, 1))
If AK = 75 Then EL(N1) = EL(N1) - (EL(N1) >= -2 * pigreco) * pigreco / 180
If AK = 77 Then EL(N1) = EL(N1) + (EL(N1) <= 2 * pigreco) * pigreco / 180
If xx1(N1) < 0 Or xx1(N1) > lo Then 6150
If yy2(N1) < 0 Or yy2(N1) > lv Then 6150
Circle (xx1(N1), yy2(N1)), Rg(N1), 0
GoTo 6150
6170 Locate 9, 1: Print " Precisa: ": L = 10: C = 11
GoSub scrivi: EL(N1) = N * pigreco / 180
If xx1(N1) < 0 Or xx1(N1) > lo Then 6180
If yy2(N1) < 0 Or yy2(N1) > lv Then 6180
Circle (xx1(N1), yy2(N1)), Rg(N1), 0
6180 x0(N1) = dmax0(N1) * Cos(EL(N1)) '* COS(AZ(N1))
If Abs(x0(N1)) < .1# Then x0(N1) = 0
z0(N1) = dmax0(N1) * Sin(EL(N1))
If Abs(z0(N1)) < .1# Then z0(N1) = 0
xx1(N1) = x0(N1) * gx + 320.5: yy2(N1) = z0(N1) * gx + 240.5
If xx1(N1) < 0 Or xx1(N1) > lo Then 6190
If yy2(N1) < 0 Or yy2(N1) > lv Then 6190
Circle (xx1(N1), yy2(N1)), Rg(N1), 15
6190 Locate 20, 1: Print " Confermi (s) ? "
6200 A$ = InKey$: If A$ = "" Then 6200
If A$ = "n" Then 6150
x0(N1) = x0(N1) * Cos(AZ(N1)) * Cos(EL(N1))
If Abs(x0(N1)) < .1# Then x0(N1) = 0
y0(N1) = dmax0(N1) * Sin(AZ(N1))
If Abs(y0(N1)) < .1# Then y0(N1) = 0
z0(N1) = z0(N1) * Cos(AZ(N1)) * Cos(EL(N1))
If Abs(z0(N1)) < .1# Then z0(N1) = 0
6210 Next N1
pkx = kx: GoSub pargraf: GoSub calcint
For N1 = 1 To nc: xx1(N1) = -1: yy1(N1) = -1: Next N1
If I2 Then
Locate 20, 1
Print " Puoi premere -g- per cambiare subito l'angolo di direzione. "
6220 A$ = InKey$: If A$ = "" Then 6220
If A$ = "g" Then
I2 = 0: For N1 = 1 To nc: Lc = 21: GoSub angdir: Next N1
I1 = 1: GoTo 190
End If
End If
If kx <> pkx Then Screen 9, , 1, 0: Cls
PCopy 1, 0
Return
'
dimquad:
7000 Locate 14, 1: L = 15: C = 20
Print "dim. quadro (dist. max.": Print "dal primo astro) ="; dq
GoSub scrivi: dq = N
If dq < 1 Then dq = 1: GoTo 7000
GoSub pargraf: GoSub calcint
Return
'
velorb:
v(1) = Sqr(G * (M0(2) ^ 2) / (M0(1) + M0(2)) / dmax0(2))
v(2) = Sqr(G * (M0(1) ^ 2) / (M0(1) + M0(2)) / dmax0(2))
Return
'
veloc:
L = 10: C = 20
Locate L, 1
Print "veloc."; N1; "(m/sec) ="; v(N1);
Print Space$(23 - Len(Str$(v(N1))))
GoSub scrivi: v(N1) = N
Return
'
angdir:
If I2 Then
Locate 20, 1: Print " Puoi premere -a- per cambiare subito l'assetto. "
End If
C = 31
L = Lc: Locate L, 1: Print Space$(40): Print Space$(40)
Locate L, 1
Print "direz. piano x-y"; N1; "(gradi) = "; dirxy(N1); " "
GoSub scrivi: dirxy(N1) = N
L = Lc + 1: Locate L, 1
Print "direz. piano x-z"; N1; "(gradi) = "; dirz(N1); " "
GoSub scrivi: dirz(N1) = N
7001 If I2 Then
A$ = InKey$: If A$ = "" Then 7001
If A$ = "a" Then I2 = 0: GoSub assetto: I1 = 1: GoTo 210
End If
Return
'
astromax:
Mmax = 1: For N1 = 1 To nc
If M(N1) > M(Mmax) Then Mmax = N1
Next N1: Return
'
qudist:
Locate 12, 1: Print "quota(1) o distanza(2) ? (2) ";
8000 A$ = InKey$: If A$ = "" Then 8000
If A$ <> "1" Then A$ = "2"
If A$ = "2" Then GoSub distmax: Return
GoSub unit2: For N1 = 1 To nc
ud#(N1) = ud#: ud$(N1) = ud$: dmax0(N1) = ud#(N1)
Next N1
8010 q0 = 0: Locate 13, 1
L = 13: C = 14: Print "quota ("; ud$(1); ") = "; q0 / ud#(1);
GoSub scrivi: q0 = N * ud#(1)
If q0 <= 0 Then q0 = (dmax0(2) - R(1) - R(2)) * 2: GoTo 8010
dmax0(2) = R(1) + q0: dmax0(1) = 0
Dmax = 2
x0(1) = 0: y0(1) = 0
x0(2) = dmax0(2) * Cos(EL(2)) * Cos(AZ(2))
If Abs(x0(2)) < .1# Then x0(2) = 0
y0(2) = dmax0(2) * Cos(EL(2)) * Sin(AZ(2))
If Abs(y0(2)) < .1# Then y0(2) = 0
z0(2) = dmax0(2) * Sin(EL(2))
If Abs(z0(2)) < .1# Then z0(2) = 0
GoSub pargraf: GoSub calcint
Return
'
distmax:
For N1 = 1 To nc: If N1 = Mmax Then 9010
GoSub unit2
ud#(N1) = ud#: ud$(N1) = ud$
9000 L = 13: C = 28: Locate 13, 1
Print "dist."; N1; "dal I astro ("; ud$(N1); ") ="; dmax0(N1) / ud#(N1);
GoSub scrivi: dmax0(N1) = N * ud#(N1)
If dmax0(N1) <= 0 Then dmax0(N1) = (R(N1) + R(Mmax)) * 2: GoTo 9000
9010 Next N1
Dmax = 1: For N1 = 1 To nc
If dmax0(N1) > dmax0(Dmax) Then Dmax = N1
Next N1
For N1 = 1 To nc: If N1 = Mmax Then 9020
x0(N1) = dmax0(N1) * Cos(EL(N1)) * Cos(AZ(N1))
If Abs(x0(N1)) < .1# Then x0(N1) = 0
y0(N1) = dmax0(N1) * Cos(EL(N1)) * Sin(AZ(N1))
If Abs(y0(N1)) < .1# Then y0(N1) = 0
z0(N1) = dmax0(N1) * Sin(EL(N1))
If Abs(z0(N1)) < .1# Then z0(N1) = 0
9020 Next N1: GoSub pargraf: GoSub calcint
Return
'
pargraf:
' - Calcolo parametri grafici -
kx = lo / dmax0(Dmax) / dq / 2
For N1 = 1 To nc: Rg(N1) = R(N1) * kx: Next
primo = 1
Return
'
calcint:
vmax1 = 0
For N1 = 1 To nc: If M0(N1) = 0 Then 10000
If v(N1) > vmax1 Then vmax1 = v(N1)
10000 Next N1
it = Int(dmax0(Dmax) / vmax1 / 200)
Return
'
interv:
11000 Locate 16, 1: L = 16: C = 20
Print "intervallo (sec) ="; it: GoSub scrivi: it = N
If it = 0 Then it = 1: GoTo 11000
Return
'
randomizza:
For N1 = 1 To nc
um$(N1) = "Kg": ur$(N1) = "Km": ud$(N1) = "Km"
M0(N1) = Int(Rnd * MS * 10) + MS
M(N1) = M0(N1): Mtot = Mtot + M(N1)
R0(N1) = Int(Rnd * RS * 10) + RT: R(N1) = R0(N1)
dirxy(N1) = Int(Rnd * 360): dirz(N1) = Int(Rnd * 360)
Next N1
GoSub astromax
For N1 = 1 To nc: If N1 = Mmax Then 12000
dmax0(N1) = Int(Rnd * RS * 1000) + RS * 10
AZ(N1) = Rnd * 2 * pigreco + Rnd * 2 * pigreco / N1
EL(N1) = Rnd * 2 * pigreco + Rnd * 2 * pigreco / N1
x0(N1) = dmax0(N1) * Cos(AZ(N1)) * Cos(EL(N1))
y0(N1) = dmax0(N1) * Sin(AZ(N1)) * Cos(EL(N1))
z0(N1) = dmax0(N1) * Sin(EL(N1))
v(N1) = Sqr(G * (M0(Mmax) ^ 2) / (M0(N1) + M0(Mmax)) / dmax0(N1))
12000 Next N1
Dmax = 1: For N1 = 1 To nc
If dmax0(N1) > dmax0(Dmax) Then Dmax = N1
Next N1
GoSub pargraf: GoSub calcint
GoTo 190
Return
'
zprof1:
For N1 = 1 To nc: If M(N1) = 0 Then 13000
prof(N1) = N1
13000 Next N1
For N1 = 1 To nc: If M(N1) = 0 Then 13002
For N2 = N1 + 1 To nc: If M(N2) = 0 Then 13001
If zz1(N1) < zz1(N2) Then Swap prof(N2), prof(N1)
13001 Next N2
13002 Next N1
Return
zprof2:
For N1 = 1 To nc: If M(N1) = 0 Then 14000
prof(N1) = N1
14000 Next N1
For N1 = 1 To nc: If M(N1) = 0 Then 14002
For N2 = N1 + 1 To nc: If M(N2) = 0 Then 14001
If zz2(N1) < zz2(N2) Then Swap prof(N2), prof(N1)
14001 Next N2
14002 Next N1
Return
'
scrivi:
Locate L, C: Input "", W: N$ = ""
For k = C To C + 30: N$ = N$ + Chr$(Screen(L, k)): Next
N = Val(N$): Return
'
errore:
Resume Next
End
Function fndist#
Dist# = (x(N1) - x(N2)) ^ 2 + (y(N1) - y(N2)) ^ 2
fndist# = Sqr(Dist# + (z(N1) - z(N2)) ^ 2)
End Function
Function fndmax#
dm# = (x(N1) - x(Mmax)) ^ 2 + (y(N1) - y(Mmax)) ^ 2
fndmax# = Sqr(dm# + (z(N1) - z(Mmax)) ^ 2)
End Function
